Case study: Frontier: Elite II

A 1:1 reimplementation of Frontier: Elite II (DOS, 1993) in Rust and wgpu, for native platforms and the browser, on the player's own copy of the game. The repository is private while the work is in progress. It shows a different route. The port runs the original inside itself and replaces it routine by routine.

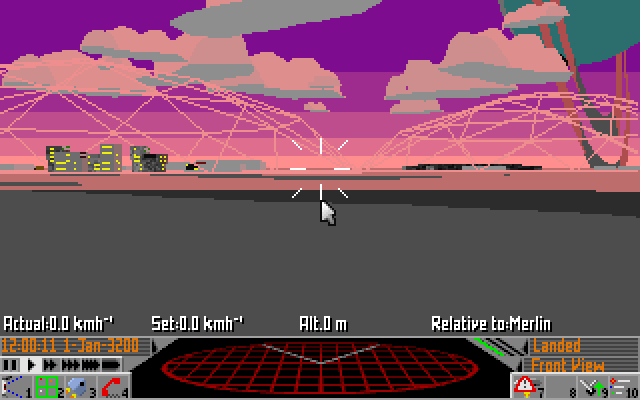

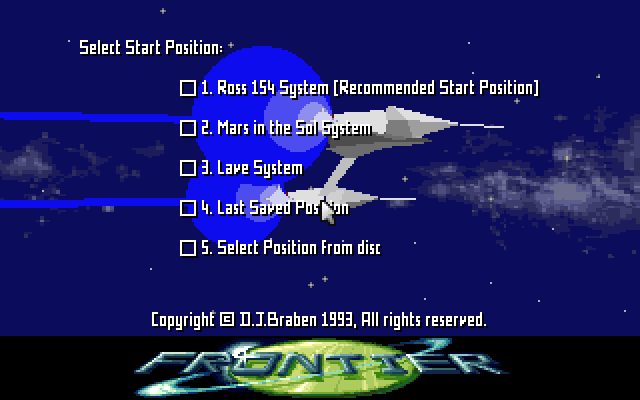

The project's own runtime running the player's copy of the game, headless: the start-position menu, and the cockpit after choosing Ross 154. The maths library and the sound driver in these runs are the native ports.

Why it is a useful example

Frontier is a space simulation: a galaxy generated from seeds, real orbits, and a software 3D engine. The program is a DOS executable plus twenty code overlays (loaded on demand into the same memory) and separate overlays for the maths library, the video driver and the sound drivers. Much of the maths is hand-written assembly with values passed in registers.

What the project did

• A runtime of its own. The project wrote an in-process 386 real-mode CPU with the DOS, BIOS, EMS and VGA services the game uses. The original runs on it from boot to the cockpit, natively and in the browser, reading the player's files.
• Oracle and scaffold at once. Any original routine can be called with chosen inputs in cargo test. Its registers and memory are compared with the native port. The playable game runs the original code. Native ports are hooked in at the original routines' addresses as they are written. When nothing original runs any more, the runtime remains only as the oracle.
• The maths library first. All 47 routines of the maths overlay (float arithmetic, square roots, matrices, projection, the vertex transformer, face shading, 64-bit positions) were ported and checked, then run natively in the game with frames identical to the original over 60 seconds.
• Sound. The AdLib driver was ported natively; its output is identical sample for sample to the original driver running on the runtime, through an OPL2 model at the chip's own rate.
• Overlays. The overlay loader was traced first, and its tables used to seed function discovery in Ghidra across all overlays.

Tooling it built

Need	Tool
Run the original as a reference, with a window	DOSBox Staging with a fixed configuration and a reset script
Run the original inside tests and the game	the project's 386 and DOS runtime
Replace routines one at a time	hooks at the original's addresses, with parity checks and shadow verification (run both, compare)
Analyse the overlays	Ghidra scripts that seed functions from the overlay tables and export ranges

What it teaches

• When the original is small enough to emulate, running it inside the port gives a playable game on day one and an oracle in every test.
• Replace the original from the bottom up (maths, then drawing, then rules), checking each routine as it replaces the original, while the game keeps running.
• Do the same for the drivers: a ported sound driver can be compared sample for sample.

OpenRCT2 and OpenLoco used the same idea on Windows: new code linked into the original program, replacing it function by function (Management).
